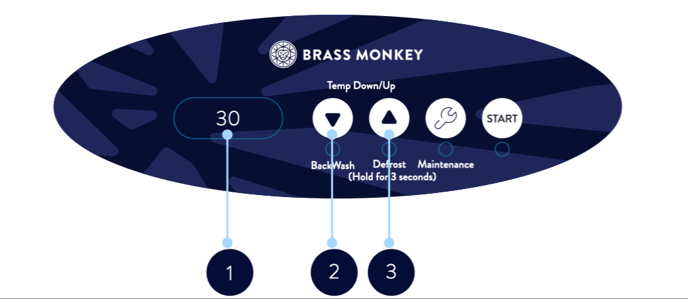

      PRO RANGE: The Control Panel

      How to use the control panel on your bath



      1

      Temperature

      The control panel displays the CURRENT water temperature. The display has no decimal place, therefore 3°C is displayed as 30. When up or down keys are pressed, the TARGET temperature is displayed.


      2

      Temp down

      The lowest temp setting is 3°C for chill products.

      For Ice products the target temp dial goes down to 2°C, then under 2°C there are 3 levels of ice intensity to choose from (1-3). Level 3 is the most intense.

      Please note, when changing the target temperature, the cooling engine may take a few minutes to restart.


      3

      Temp up

      The highest temperature setting is 10°C, going above this sets the bath to ‘idle’ (filtration continues to run but the cooling engine is off). NB. If the target temp is adjusted to be set above the current water temp, there is no heating function - water will warm up naturally until the target set exceeded, when cooling will kick back in.


      2

      Backwash mode (temp down long press)

      Press and hold the Temp Down arrow for 3 seconds to put the bath into a backwash mode - This turns the cooling engine off (on plunges with a chiller engines) while keeping the pump running. This is important to protect plunges with a chiller engine while backwashing. The LED will flash quickly.



      4

      Maintenance mode (spanner)

      Press and hold for 3 seconds to put the bath into a
      maintenance mode - The LED light on the chiller and light in the bath will flash 3 seconds on 3 seconds off whilst in this mode. From here you can change the particle filter. Exit maintenance mode by pressing and holding for 3 seconds again.


      5

      Start

      This function is for our residential range to turn the light on in the plunge. Not applicable for PRO range.


      3

      Defrost

      This function is for ice baths only, and should only be used if ice ever becomes stuck on the bottom of the plunge.






      Bath light




      The light in the bath will remain on even when not in use. The light will flash when in maintenance/backwash mode. If the light flashes when not in one of these modes contact the CX team.
