      SPA RANGE CARE: DAILY

      Little TLC each day will help you keep the water healthy and your Brass Monkey happy

      The SPA RANGE product has a muti-stage filtration system. However it relies on frequent observation to remove any blockages that may affect the flow of water through the cooling system. User load and showering before use will make a big difference to how often you need to clear, backwash or replace the water. Regular checks helps you stay on top of hygiene and take action when required, rather than waiting for an issue to build up.

      Check & Clear

      How does the water look?

      Is it clean and clear or is it noticeably dirty/murky?

      Are there debris or foreign objects within the unit?

      Is there enough water?

      Do's  Dont's
      Check and clear the pre filter that sits over the suction hole inside the unit Don't ignore cleaning the pre filter or skimmer - if this becomes blocked it can reduce the flow water causing inefficient filtration and sanitisation and can cause damage to your unit.
      Use a spa vac to reach into the water and clean around the pre filter removing any debris. (This keeps the water flowing smoothly and helps to maintain a good flow rate.

      If the water is looking murky you may need to:

      - Complete and extended back wash and top up water

      - Clean the scum line

      - Complete a system flush
      Once done, move onto cleaning/emptying the skimmer basket (N/A to barrels)
      If you do not have a spa vac, drain the water until you can reach the filter and clean with a cloth. Follow steps to top the water back up.

      Clearing the skimmer

      If you have a stainless steel skimmer cover plate, remove this by sliding it up and putting it to one side whilst you complete the following steps.

      1. Open the door to the skimmer, there is a groove on the door to help pull it open.

      When holding the door open do not put excessive pressure on it.

      2. Reach into the skimmer and take out the basket

      Be mindful that the basket will catch any debris so do not empty this into the water.

      3. Rinse the basket until all debris is removed.

      4. Open the door the skimmer and replace the basket. The large lip should face the front of the skimmer

      If you have a stainless steel skimmer cover plate, replace this by lining it up with the fittings on the bath and sliding it down into place.



      Test & Dose

      Prior to opening and then every 2 hours (minimum)throughout the day and at the end of the day after completing maintenance.  Please check the instructions with your testing kit but as a guide follow the steps outlined.

      Step 1 Taking the Sample

      1. Get the water testing kit, including the dipstick and bottle.
      2. Attach the bottle to the dipstick and take both to the bath with a thermometer.
      3. Submerge the bottle 30cm into the water, fill, shake, and rinse it.
      4. Repeat, but this time hold the blue button on the dipstick to close the bottle while lowering it.
      5. Release the button to fill the bottle at 30cm depth, then press the button again to seal it before removing.
      6. Measure the water temperature with the thermometer at the same depth.
      7. Record water and air temperatures on the Daily Water Quality Test Log

      Step 2 Reading the Sample

      Follow test kit instructions to measure:
        • Free Chlorine
        • Total Chlorine
        • Combined Chlorine
        • pH
      • Record results on the Daily Water Quality Test Log.

      Step 3 - Interpret & Action the Results

      Enter the clarity of the water under the same heading

      • The optimum chlorine level is around 1ppm.
      • If below 0.5ppm close the bath to users and increase chlorine levels by adding small amounts at a time - this is best done manually and placed in top of bath in the skimmer.
      • When re-testing after dosing, wait 15 mins until the chlorine has fully mixed with the body of water • Test again until you meet the correct level
      • Anything above 3ppm is dangerous. Dosing should be stopped immediately and the bath put out of use until the water has been diluted and the re-tested to an acceptable chlorine level.



      Water Top Up

      This is to be completed through out the day as required and after backwashing.

      1. Activate MAINTENANCE MODE

      (Press and hold the spanner on the control panel).

      Turns off the engines and pump, allowing you to move the filter handle without water rushing through.

      9. Depress the media filter handle and turn it to the CLOSED position.

      Closes the media filter so the bath can be refilled with water.

      10. Open the FILL TAP and close it once the water level reaches the middle of the skimmer.

      Restores the correct water level for operation.

      11. Depress the media filter handle and turn it to the FILTER position.

      Sets the media filter to its daily use configuration.

      12. Exit MAINTENANCE MODE (Press and hold the down arrow on the control panel).

      Restores pump and engine operation.

      13. Check the bath is running: ensure the light is illuminated, and water is flowing.

      Confirms the backwash process is complete. Wait 1 hour before using the bath.

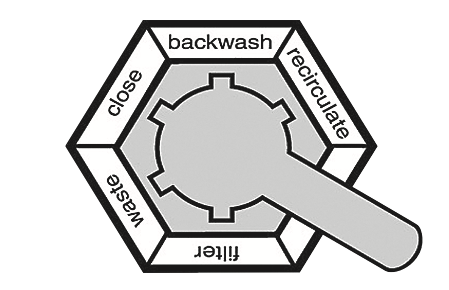

      Media Filter - Handle



      End of Day Wipe Down

      1. The bath should be cleaned daily with chlorinated water (100mg/l). This should include the top deck and the step. After being wiped down they should then be dried.
      2. Clean around the waterline using product such as sodium bicarbonate which can help to remove body fat around the waterline.
